Atrium Longlight/Ridgelight
Atrium Longlight/ Ridgelight
Multiple rows of skylight modules that can be combined to create a large glass roof.
Suitable for/Key benefits:
Flat roof
Flat roofing material
Roof opening extra large
Rooflight installation pitch 5-40°
Ideal for construction of large, glazed roofs
Easy, fast and secure installation
Great design flexibility
Products details
In short
Functions and sizes
Details

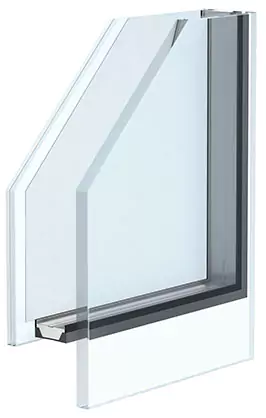

Glazing
Performance
Additional solutions

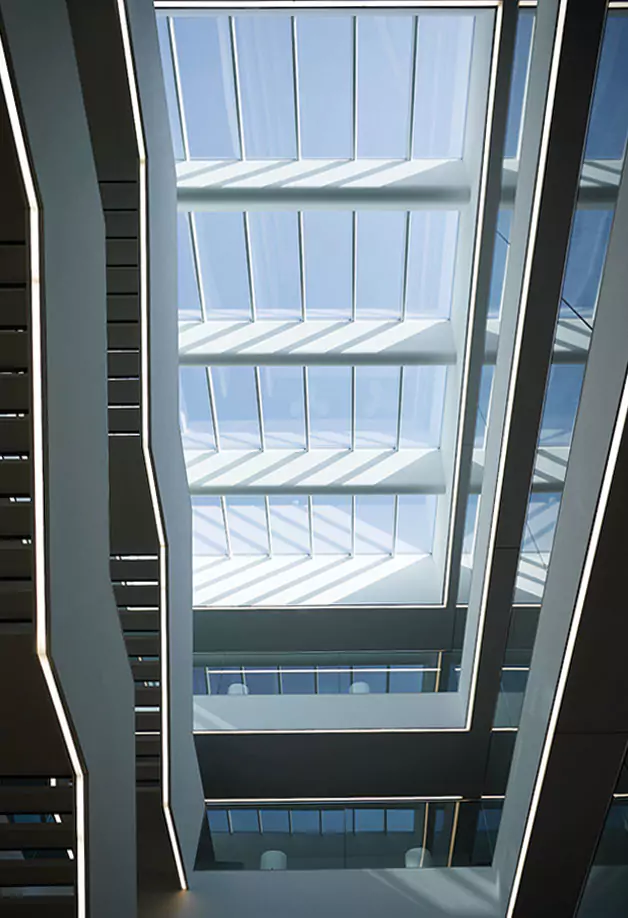

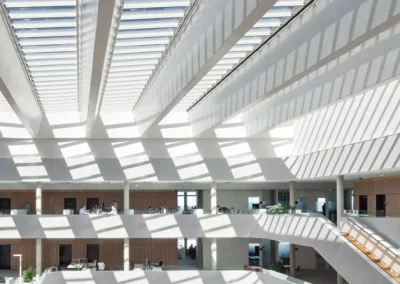

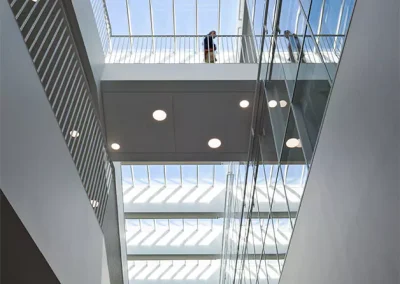

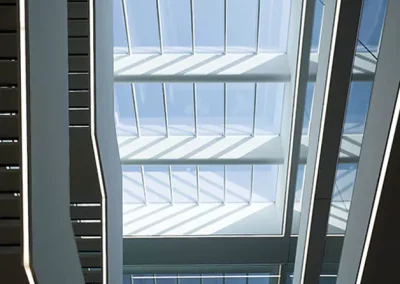

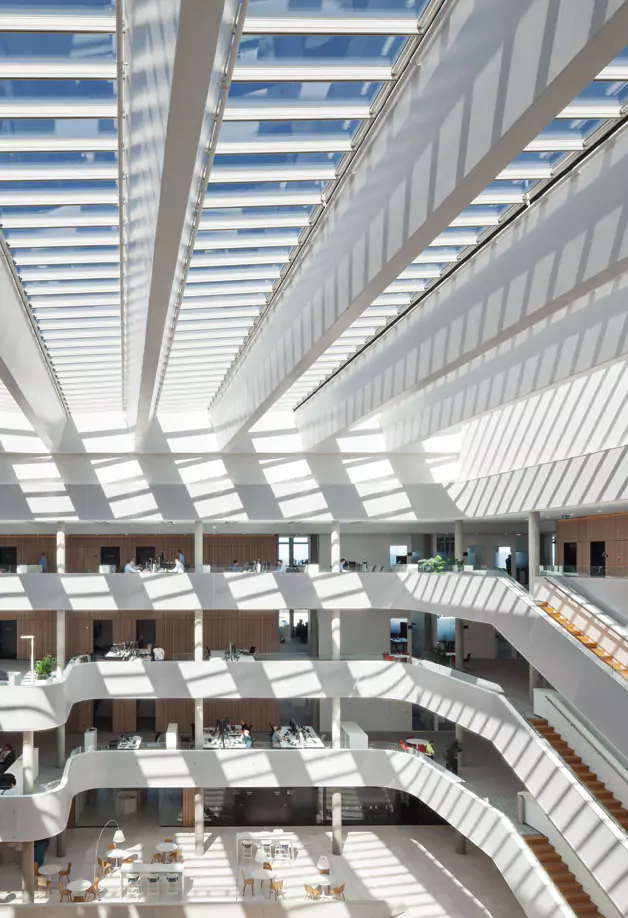

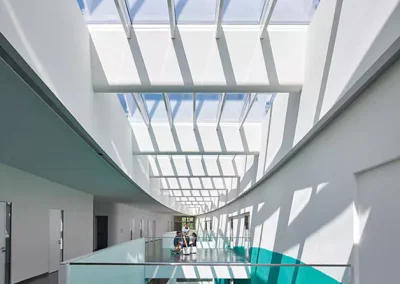

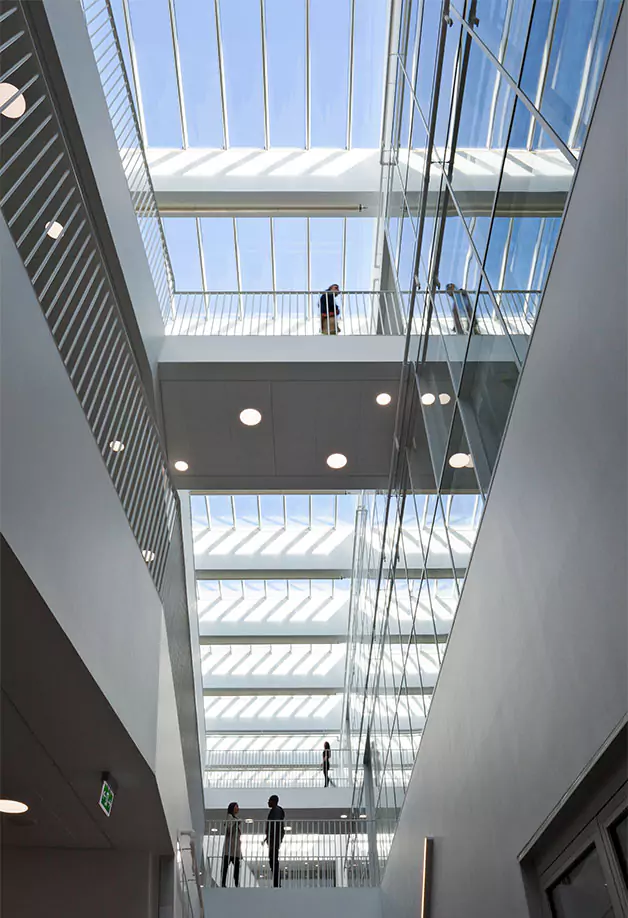

VELUX modular Longlight and Ridgelight solutions enable great daylight design in buildings with large, open atriums.
The modular skylights enable fast and intuitive design when multiple rows are simply put together to cover the
atrium – big or small.

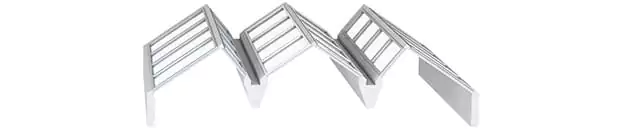

For optimum thermal comfort, we recommend Ridgelights 25-40° with venting modules.

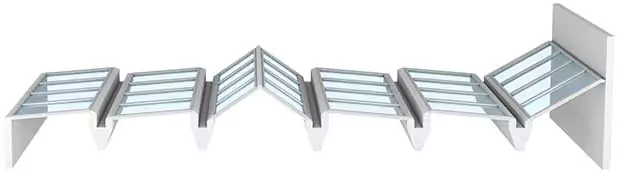

The rooflights are connected via drainage gutters and supported by structural beams. The beams also serve as support
for the sub-construction used for mounting the skylight modules.
For maximum daylight, we recommend either mono-pitched Longlights installed at low angle or
Ridgelights at 5° with beams.
The rooflights are connected via drainage gutters and supported by structural beams. The beams also serve as support
for the sub-construction used for mounting the skylight modules.
VELUX modular skylights are delivered with a 10-year guarantee on modules and flashings.
Kynar 500 – Baked Enamel
1. Fixed skylight module
2. Motorized comfort venting skylight module. Actuator chain stroke 260 mm.
3. Motorized smoke venting skylight module opens up to 700mm in less than 60 seconds
VELUX modular skylights require the following minimum and maximum measurements:
- Module width: 675-1000 mm
- Module height: 600-3000 mm
VELUX modular skylight system is a turnkey solution comprising prefabricated skylight modules with dedicated claddings, flashings and vapour barrier connection strip to allow for design of watertight rooflight and glass roof structures.
Comfort ventilation is possible via an integrated chain actuator that can be controlled with VELUX INTEGRA® system or with your preferred building management system. Smoke ventilation can only be controlled with your preferred building management system.
For optimal daylight and heat control consider internal roller blinds that can be pre-mounted from the factory.
CAD/BIM
specification, product details and material information.

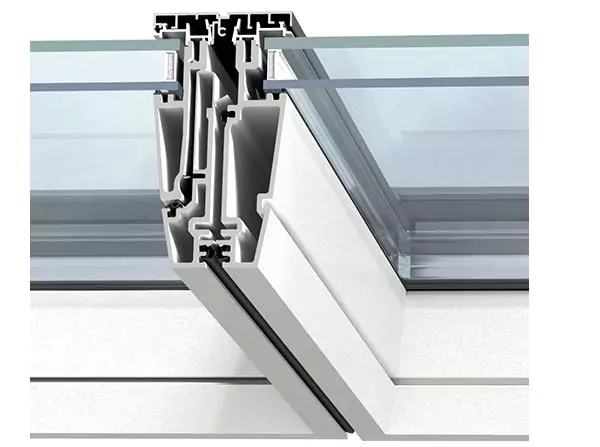

The VELUX modular skylight profiles (sash and frame) are made of pultruded fiberglass (80%) and polyurethane composite (20%). The composite material provides high insulation performance and thermal stability as well as excellent profile stiffness and bending strength.
Due to the concept of prefabrication, we are able to test our products extensively against all thinkable hazards and stressful events. Tests are performed in controlled environments in accordance with harmonized standards for both Windows and doors and for Smoke and Heat control systems.
Create a unique skylight solution
By adapting the interior linings, the modular skylights can meet the demands of modern architecture featuring
irregular or curved shapes, e.g. obtuse angles, acute angles or ovals.
Asymmetrical solutions
The great flexibility of VELUX Modular Skylights enables design of asymmetrical atrium solutions.
Combining solutions
Combining different types of modules creates beautiful solutions that optimize comfort and ventilation. Let us help
you find the right solution for your next design idea.
