Ridgelight 25-40°



Ridgelight 25-40°

A dual pitched rooflight for installation on a flat roof or at a roof apex.

 Suitable for/Key benefits:

    Flat roof and at the top of a sloped roof

    Flat roofing material

    Opening width in roof min./max 1.1-4.5 m (for venting modules 1.4-4.5 m)

    Rooflight installation pitch 25-40°

    Ensures maximum daylight and thermal comfort

    Adds spaciousness to the area below

    Totally self-supporting solution

    Products details

    In short

    Functions and sizes

    Details

    Glazing

    Performance

    Additional solutions

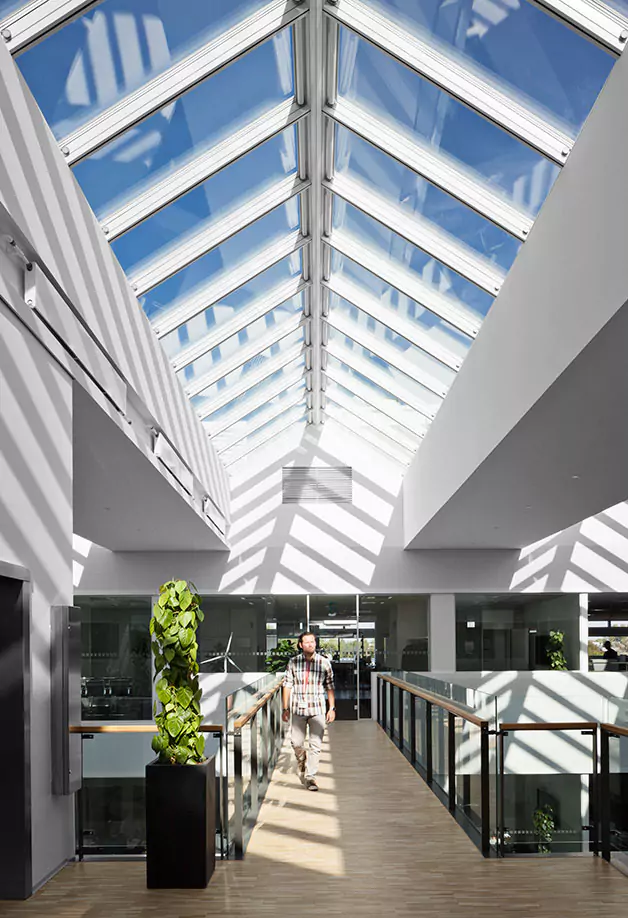

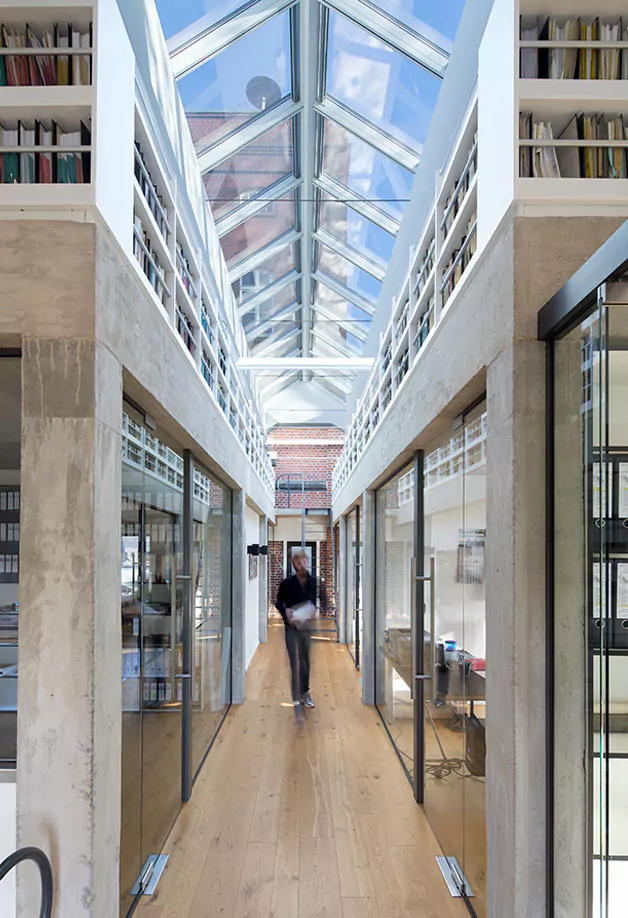

    Ridgelight 25-40° is a classic rooflight solution, where two rows of modular skylights are connected at the ridge. The dual pitched Ridgelight solution is ideal for buildings with large roof openings.

    Ridgelight 25-40° with vented skylight modules on both sides is an optimal solution for buildings that require day or night cooling.

    The Ridgelights can be supplied with different types of glazing on each side to control heat and glare according to the orientation of the building.

    VELUX modular skylights are delivered with a 10-year guarantee on modules and flashings.





    Kynar 500 – Baked Enamel

    1. Fixed skylight module

    2. Motorized comfort venting skylight module. Actuator chain stroke 260 mm.

    3. Motorized smoke venting skylight module opens up to 700mm in less than 60 seconds

    VELUX modular skylights require the following minimum and maximum measurements:

    • Module width: 675-1000 mm
    • Module height: 600-3000 mm



    VELUX modular skylight system is a turnkey solution comprising prefabricated skylight modules with dedicated claddings, flashings and vapour barrier connection strip to allow for design of watertight rooflight and glass roof structures.

    Comfort ventilation is possible via an integrated chain actuator that can be controlled with VELUX INTEGRA® system or with your preferred building management system. Smoke ventilation can only be controlled with your preferred building management system.

    For optimal daylight and heat control consider internal roller blinds that can be pre-mounted from the factory.

    CAD/BIM

    Get CAD/BIM objects for all major software platforms and find the right specification, product details and material information.

    The VELUX modular skylight profiles (sash and frame) are made of pultruded fiberglass (80%) and polyurethane composite (20%). The composite material provides high insulation performance and thermal stability as well as excellent profile stiffness and bending strength.

    Due to the concept of prefabrication, we are able to test our products extensively against all thinkable hazards and stressful events. Tests are performed in controlled environments in accordance with harmonized standards for both Windows and doors and for Smoke and Heat control systems.

    Create a rooflight solution to match your design

    By adapting the interior lining, modular Ridgelights 25-40° can be used in non-square designs, e.g. obtuse angles, acute angles or ovals. By using adapted linings, the modular skylights meet the demands of modern architecture featuring irregular or curved shapes.

    Create an rooflight asymmetrical solution

    Modules of different heights can be combined to form an asymmetrical Ridgelight solution that bridges roof sections of different height and slope. Using glazing with different characteristics on each side of the Ridgelight help maximize daylight and minimize heat intake.
