Longlight 5-30°
Longlight 5-30°
A mono-pitched solution ideal for flat roofs.
Suitable for/Key benefits:
Flat and sloped roof
Flat roofing material
Rooflight installation pitch 5-30°
Opening width in roof min./max. 0.6-3.1 m (for venting modules 0.8-2.5 m)
Subtle expression thanks to low pitch design
Adding daylight to hallways, corridors and large rooms
Great value-for-money due to fast and hassle-free installation
Products details
In short
Functions and sizes
Details
Glazing
Performance
Additional solutions
Longlight solution

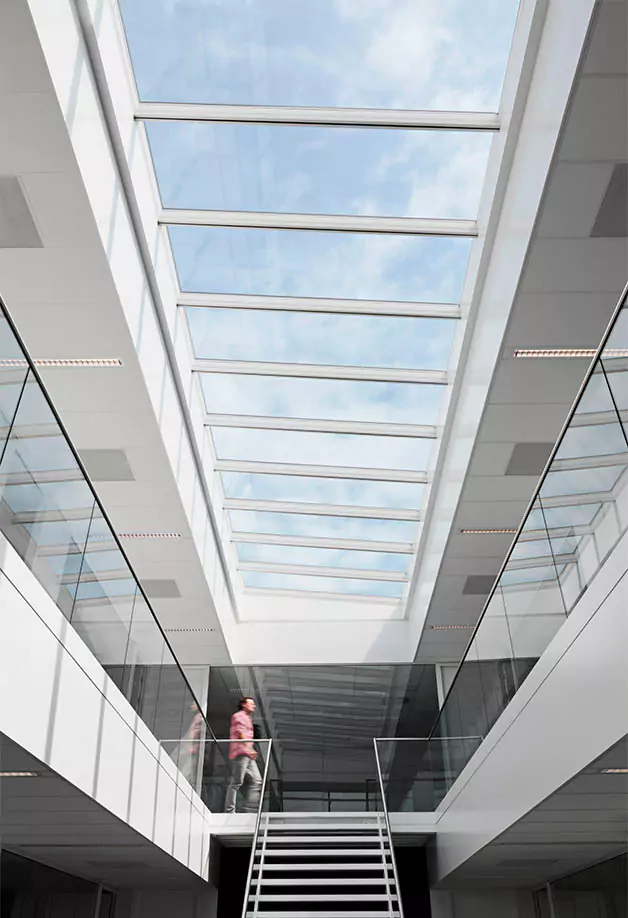

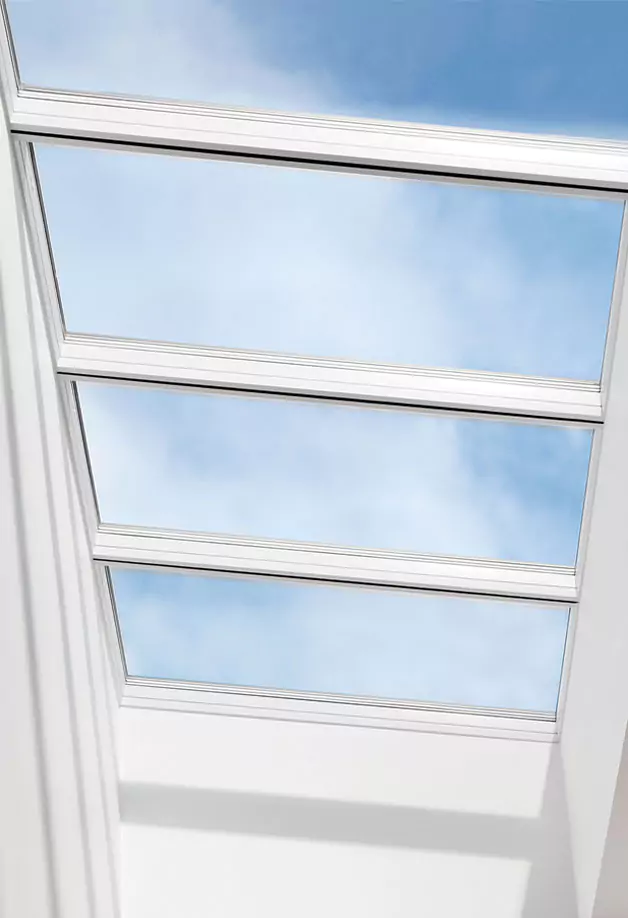

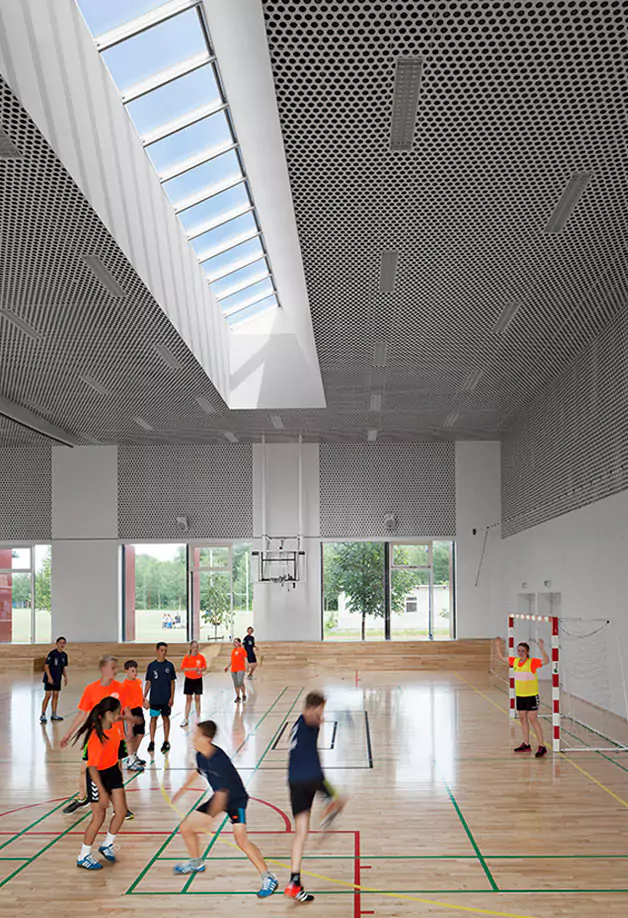

A Longlight solution is a single row of modules that lights up hallways, corridors and large rooms with natural daylight. Multiple rows of Longlights form an ideal glass roof for large open areas, e.g. atriums.
Install the Longlights to follow the interior floor plan to optimise daylight and ventilation in every corner of the room.
The modular Longlights allow fast and easy closure of the roof to reduce cost and speed up the interior works.
VELUX modular skylights are delivered with a 10-year guarantee on modules and flashings.

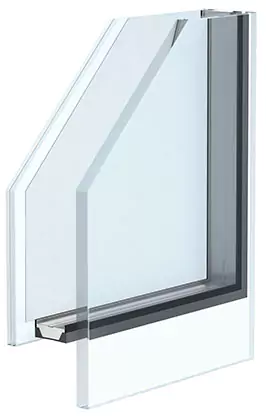

Kynar 500 – Baked Enamel
1. Fixed skylight module
2. Motorized comfort venting skylight module. Actuator chain stroke 260 mm.
VELUX modular skylights require the following minimum and maximum measurements:
- Module width: 675-1000 mm
- Module height: 600-3000 mm
Pre-fabricated modular skylights
VELUX modular skylight system is a turnkey solution comprising prefabricated skylight modules with dedicated claddings, flashings and vapour barrier connection strip to allow for design of watertight rooflight and glass roof structures.
Comfort ventilation is possible via an integrated chain actuator that can be controlled with VELUX INTEGRA® system or with your preferred building management system. Smoke ventilation can only be controlled with your preferred building management system.
For optimal daylight and heat control consider internal roller blinds that can be pre-mounted from the factory.
CAD/BIM
The VELUX modular skylight profiles (sash and frame) are made of pultruded fiberglass (80%) and polyurethane composite (20%). The composite material provides high insulation performance and thermal stability as well as excellent profile stiffness and bending strength.
Due to the concept of prefabrication, we are able to test our products extensively against all thinkable hazards and stressful events. Tests are performed in controlled environments in accordance with harmonized standards for both Windows and doors and for Smoke and Heat control systems.
Unique skylight solution

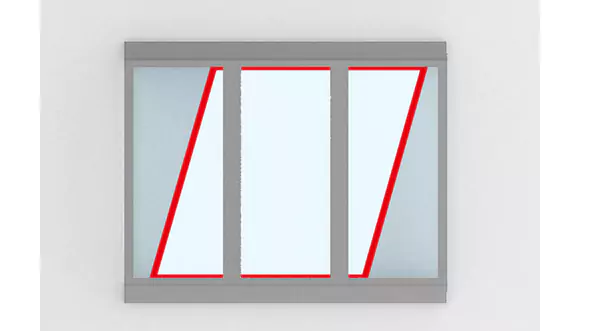

By adapting the interior linings, the modular skylights can meet the demands of modern architecture featuring irregular or curved shapes, e.g. obtuse angles, acute angles or ovals.
